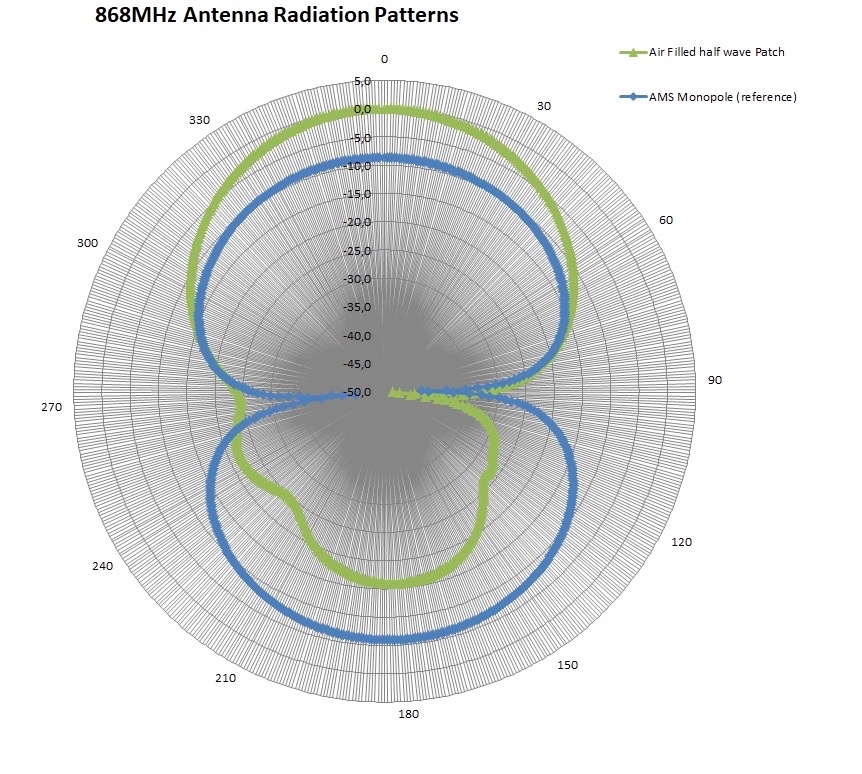

ANTENNE STRALINGS DIAGRAM (1)

RF & antenna.

RF and antenna technology is difficult to model, highly dependent on the environment and virtually impossible to debug without the right measurement equipment. As a result, most engineers tend to avoid this field. In contrast, we have invested in this field over the past twenty years.

our unique approach.

The most common mistake is to add the antenna as the final step. This results in the antenna not fitting properly, unacceptable EMC performance and signal reflection from the enclosure. We integrate the antenna starting from the very first design concept. The electronics, firmware, antenna and enclosure are designed together.

ANTENNE STRALINGS DIAGRAM (1)

Competencies

  • Antenna design and simulation using Smith Chart, NEC2, FEKO and CST Studio Suite
  • Bluetooth, WiFi, Zigbee, LoRa, NB-IoT and LTE-M integration
  • Satellite communication: Iridium (Certuse, SBD), Hiber nanosatellites
  • GPS, GNSS, Glonass and SBAS-precision applications
  • RF PDB-design: impedance matching, microstrip and coplanar waveguide



  • High-speed PCB-design and signal integrity analysis
  • eSIM-integration (hardware, software and provisioning)
  • RFID system design: UHF, HF and NFC
  • RF measurement and pre-compliance testing in own anechoic chamber
  • FCC, CE/RED and ATEX certification processes

tooling and measurement equipment.

  • CST Studio Suite
  • NEC2 / FEKO
  • Altium Designer; RF rules
  • MATLAB signal analysis
